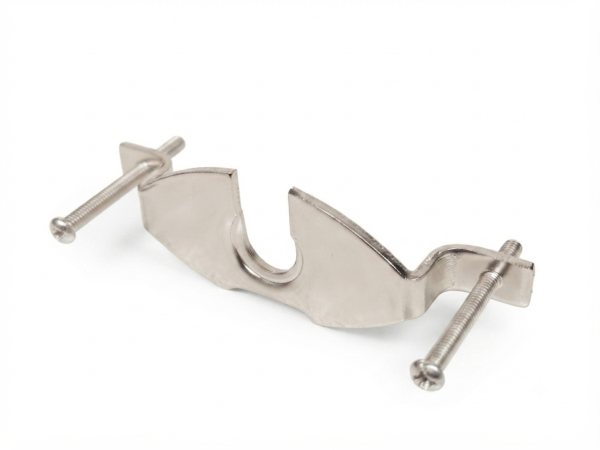

Gauge Fixing Clamp Bracket

Industrial Gauge Panel-Mounting Clamp Brackets

Achieve a clean, professional, and secure installation for your monitoring equipment with these Gauge Fixing Clamp Brackets. When pressure gauges need to be integrated directly into control desks, instrument panels, or pump enclosures, these clamps provide the crucial rear clamping force needed to lock the gauge securely forward against the panel face.

Specially optimised to accommodate steel and brass cased instruments, these brackets are perfectly tailored for fluid-filled/glycerine pressure gauges. They provide essential structural support that counteracts system vibration, making them ideal for heavy machinery, hydraulic power packs, process plant installations, and marine control panels.

Key Features & Benefits

• Tailored for Rear Connections: Specifically engineered to fit gauges with a lower back or centre back entry connection without obstructing the pressure inlet thread.
• Vibration & Shock Resistant: Ideal for glycerine-filled gauges, dampening physical panel vibrations to prevent gauge shifting or loose seating.
• Dual Size Availability: Precision manufactured to fit standard 63mm and 100mm dial diameter process pressure gauges.
• Durable Construction: Built from heavy-gauge, corrosion-resistant coated steel to ensure an incredibly reliable, high-torque hold behind the panel surface.
• Simple, Fast Installation: Slides easily onto the rear casing of the gauge and tightens smoothly down via integrated tension screws.
