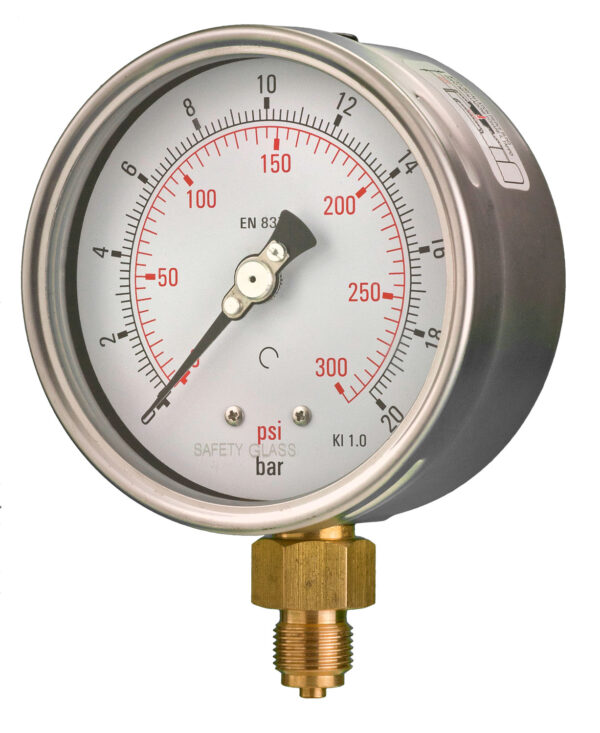

100mm - Industrial Pressure Gauge - Dry Fillable
100mm – Industrial Pressure Gauge – Dry Fillable, Bottom Connection – Accuracy ±1%

£46.08

Add to basket This product has multiple variants. The options may be chosen on the product page
🔍
100mm - Industrial Pressure Gauge - Dry Fillable
Bottom Connection - Accuracy ±1%
  1. 100mm - Industrial Pressure Gauge - Dry Fillable
  2. Bottom Connection - Accuracy ±1%

100mm – Industrial Pressure Gauge – Dry Fillable, Bottom Connection – Accuracy ±1%

£46.08

100mm industrial pressure gauge with bottom connection, stainless steel case, dry fillable design and ±1% accuracy. Ideal for reliable pressure measurement in demanding environments.

Datasheet
  • Test Certificate

  • *Range

    *Thread

    Reset options
SKU: B412A Categories: ,

Industrial 100mm Dry Fillable Pressure Gauge with Bottom Connection

This robust 100mm pressure gauge is designed for industrial applications requiring reliable and accurate pressure measurement. Its stainless steel case and dry fillable design make it suitable for use in environments where durability and safety are essential.

Key Features

  • 100mm diameter DIN style stainless steel case with flush bezel for heavy-duty use
  • Bottom connection with brass wetted parts suitable for a range of fluids and gases (excluding oxygen and acetylene)

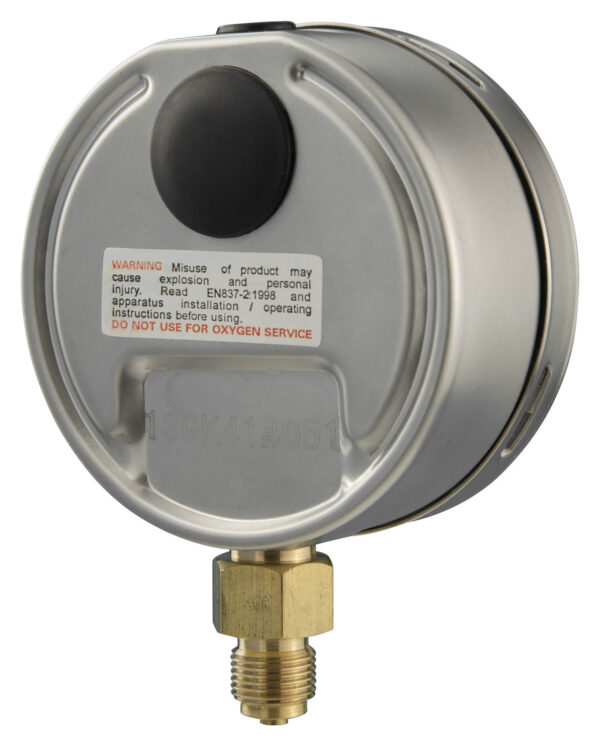

  • Safety glass window and 30mm rear safety blow-out disc for enhanced operator protection
  • Micro-adjustable pointer for precise readings with ±1.0% accuracy of full scale
  • Removable stainless steel bezel allows for future repair or recalibration
  • Individual serial number for traceability and quality assurance
Weight 0.53 kg
Range

Thread

Mounting

Connection

Diameter

Case Material

Accuracy

Wetted Material
