Pressure Gauge
Types PG0/1 PG15/1 PG30/1 PG60/1 PG100/1 PG150/1PG200/1 PG300/1 PG400/1 PG600/1.
(Number Indicates psi & bar)

• Size 63mm (2 1/2") 1/4" BSP. Bottom Entry.
• Accuracy 1.6% To BS EN837-1 (1998) Formally BS1780.
• Note: Pressure Gauges must be suitable for test purposes and with excess pressure protection.

Brass Bush Type BA2

• 1/4" M x 3/8" F, For use with 100mm (4" Dia.) Pressure Gauges

Pressure Gauge Probe Adaptor Type PPA1, PPA2, PPA3, PPA4, PPA5

Dimensions

• A. 8mm (1/4") BSP
• B. 31mm. (3/8") BSP
• C. 34mm
• D. 3.33mm
• Brass body and stainless steel probe. Or all stainless steel Type PPA4.
• Or 2mm diameter needle to suit very old Test Plugs Type PPA2 or C, = 94mm Type PPA5

Bimetal Pocket Thermometer
Type BI110 & BI70

Dimensions

• 45mm diameter face
• 140mm O/A length
• 3.5mm Probe thickness
• Range -10°C to + 110°C
• or -40°C to + 70°C
• Accuracy +/- 1.5% FSD

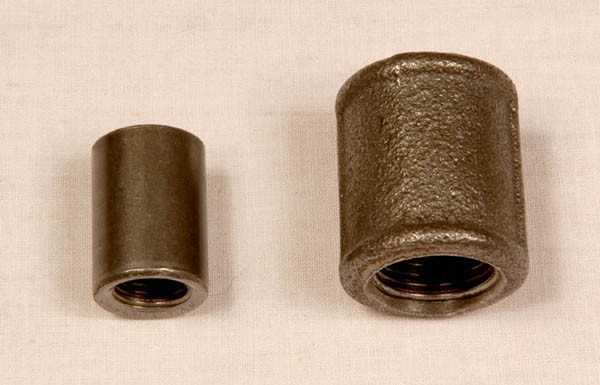

Weldable Sockets in Mild Steel

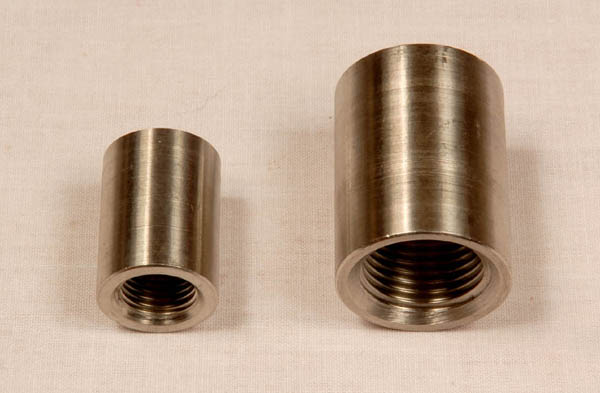

Weldable Sockets in Stainless Steel
