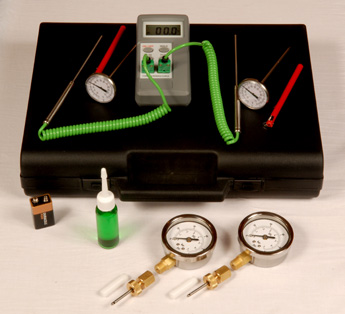

Testing
Set-Type TS1
Comprising
of:
- 1
x differential reading hand-held thermometer 0.1% resolution.
- 2
x test plug probes.
- 2
x pressure gauges 1% accuracy to BS EN 837-1 (1998) Formally BS1780.
- 2
x pressure gauge adaptor probes.
- 1
x bottle of liquid soap.
- 1
x case with foam inserts.
- Pressure
gauges standard calibrations up to 600 PSI (40 BAR). Please state required
pressure. If not stated 0-100 PSI & 7 BAR will be supplied.
- Bimetal
pocket thermometers. Please state required temperature, If not stated -10+110°C
will be supplied.
As
TS1 with:
- single
reading hand-held thermometer 0.1% resolution.
- 1
x test plug probe.
- 1
x air/surface probe.
- Testing
sets can be made to order with extra gauges and probes or without.
- Testing
Set - Type TS1 with flue probe fitted order Type TS1/FP
- Testing
Set - Type TS2 with flue probe fitted order Type TS2/FP
- All
probes used with test plugs should have rounded tips to avoid damage to the
plug's core.
- Maximum
probe diameter 4mm.
NOTE:
Hand-held thermometers' specifications are continually changing. The thermometer
shown may vary slightly.

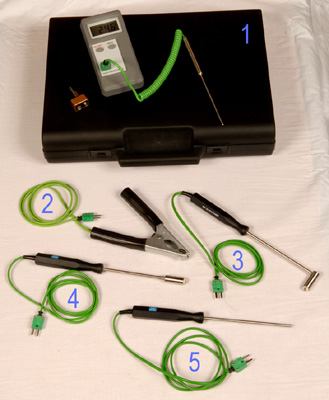

Testing
Set-Type TS2/3/4/5
|
1.
Binder test plug probe
|
|
2.
Pipe clamp probe
|
|
3.
Heavy duty angled surface probe
|
|
4.
Heavy duty straight surface probe
|
|
5.
Air or gas probe
|
- Ordering
- TS3/1
thermometer in case with foam inserts, plus Binder test plug probe.
- Add
1,2,3,4,5 after TS3 eg TS3/4/5 = thermometer, case, heavy duty straight surface
probe and air/gas probe.
- Testing
sets can be made to order with extra gauges and probes or without.
- NOTE:
Hand-held thermometers' specifications are continually changing. The thermometer
shown may vary slightly.

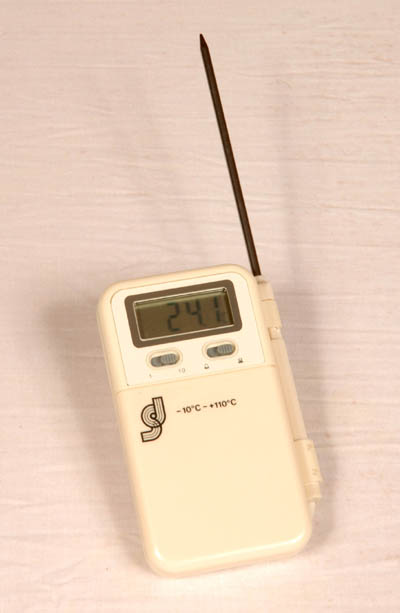

Low
Cost Digital Thermometer
Type
PT2 – Range -10 + 110° C & F
Type
PT3 – Range -40 + 50° C & F
Testing
Kit-Type TK1
Comprising
of:
- 2
x pressure gauges 1% accuracy to BS EN 837-1 (1998) formally BS1780.
- 2
x pressure gauge adaptor probes.
- 2
x bimetal pocket thermometers -10+110°C or -40+70°C.
- 1
x bottle of liquid soap.
- 1
x case with foam inserts.
- Pressure
gauges standard calibrations up to 600 PSI (40 BAR). Please state required
pressure. If not stated 0-100 PSI & BAR will be supplied.
- Bimetal
pocket thermometers. Please state required temperature. If not stated -10+110°C
will be supplied.
