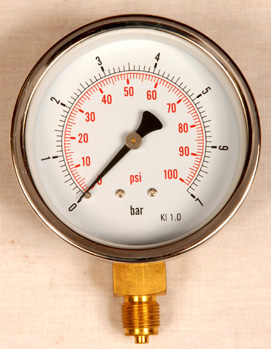

Pressure Gauges
Vacuum Gauges
Compound Gauges

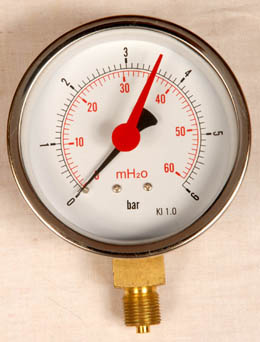

Altitude Gauges
- 100mm
and 150mm dial sizes, black case, bright bezel 3/8" BSP bottom
connection. Full sized bourdon element, brass/bronze wetted parts.
- Manufactured
to comply with D.o.E. M & E 3. M & E 100 AND BS EN 837-1 (1998)
formally BS1780 +/- 1% FSD accuracy.
The above can also be supplied with the following. Please specify when ordering:-
- 100mm
and 150mm dial gauges can also be supplied with full calibration
certificates.
- All
stainless steel gauges 63mm 100mm & 150mm dial.
- Drag
pointer gauges 100mm & 150mm dial. Where the drag needle stays at its
highest reached pressure until reset.
- Popular
ranges 63mm dial are also available.
- Glycerine
(oil filled) gauges 63mm, 100mm & 150mm dial for outside use.
- Other
ranges can also be supplied KPA, METERS & FEET, etc and higher
pressures than those shown many from stock.
- Perspex
windows also available from stock.
- 3
hole back flanged for remote reading surface mounting also available from
stock.
- Popular
ranges 100mm dial are also available brass cased.

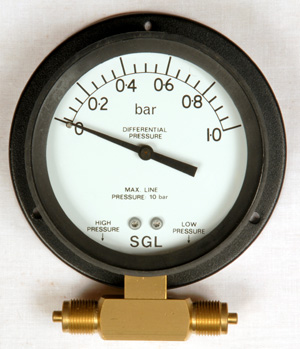

Differential Pressure Gauges
- 100mm
and 150mm dial, steel grey acrylic enamel finish case, polypropylene matt
black bezel, brass and bronze internals. 3/8" BSP connections +/- 2%
of full scale reading.
- Note
gauges can only be supplied if the line pressure is no higher than ten
times the range.
- Also
available in all stainless steel.
- Connection:-
1/8", 1/4" or 1/2".
- Connection:-
API BSP NPT & BSPT.
- Flush
mounting or flush mounting clamp fixing.
- Other
ranges can be supplied BAR & PSI, PSI only or INS.WG.
- Other
case and bezel materials.

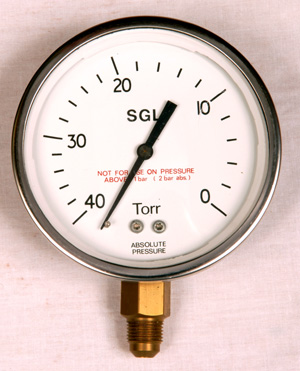

Absolute/Torr Gauges
- 100mm
dial, brass case, stainless steel bezel.
- acrylic
window, brass and bronze internals.
- beryllium
copper capsule +/-2% FSD accuracy.
- 3/8"
BSP, high vacuum connection is standard also available with 1/8" NPT,
1/4" FLARE or KLEIN FLANGE.
- Direct
mounting bottom entry or lower back entry, surface mountings (3 hole back
flange) or flush mounting clamp fixing.
- Other
ranges can be supplied, MBAR.
Capsule Gauges
- 63mm
and 100mm dial, grey steel case, shatter resistant acrylic window, brass
and copper internals 63mm dial are 1/4" BSP, 100mm dial are 1/2"
BSP +/- 1.6% FSD accuracy.
- The
above can also be supplied with back connection.
- Other
ranges in H²O, PSI, KPA.
- Stainless
Steel construction.
Refrigeration Gauges
- 63mm
and 100mm dial sizes, steel finished acrylic enamel case, weatherproof
construction with black polypropylene bezel, standard connection 1/4"
flare threaded 7/16 UNF, full sized bourdon element, brass/bronze wetted
parts.
- Manufactured
to comply with BS EN 837-1 (1998) Formally BS 1780 +/- 1% FSD accuracy.
- Also
available brass or stainless steel cased.
- Other
mountings 3 hole back flanged for remote reading surface mounting, flush
panel mounting 3 hole front flange and flush panel mounting clamp fixing.
- The
above can be supplied glycerine filled.

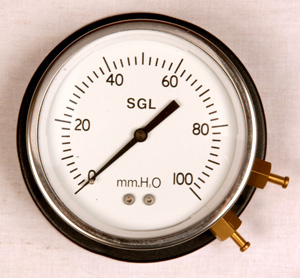

Filter Gauges
- 63mm
and 100mm dial sizes, steel case, stainless steel bezel, +/- 1.5% FSD
- accuracy,
available in surface mounting (3 hole back flange) or flush mounting
(clamp fixing) connections size 6mm o/d for push-on hoses.
- Weatherproof
construction.
- Standard
materials in contact with pressure medium are:- Brass, phosphor, bronze
steel finished acrylic grey case.
- Note
connections are on the lower rear of flush mounting (clamp fixing) gauges.
- Typical
applications for low pressure differential gauges.
- Clean
rooms.
- Dust
extraction plant.
- Filter
condition indicator.
- Fan
and blower measurement.
- Air
conditioning filters.
- The
above can also be supplied in other ranges, IN.H²O WG, IN.H²O WG
& MM WG or KPA.
- Brass
or stainless steel cased.
- Multi-coloured
dials.
- Special
connections.
- Easy
to read dials to indicate positive or differential air and gas pressures.

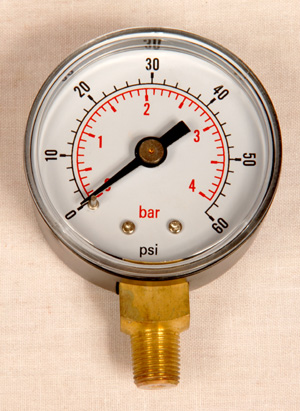

Pneumatics
- Steel
or ABS Cases

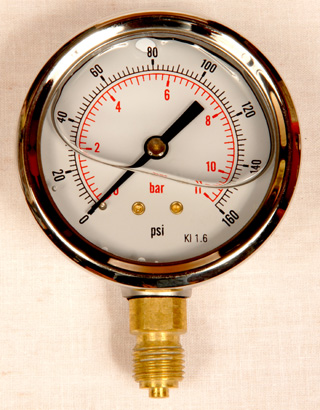

Hydraulics
- Stainless
Steel Cased
- Glycerine
Filled
All Stainless Steel

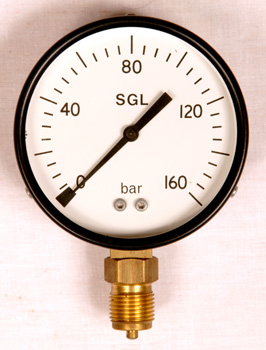

Full Safety Pattern
- Blow
Out Rear

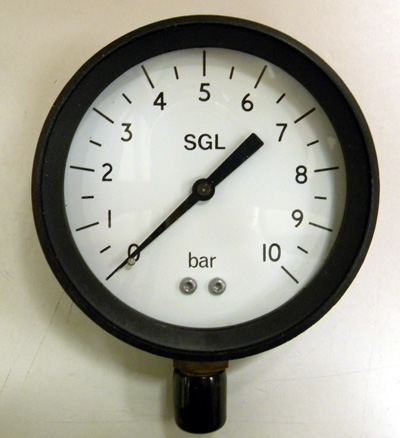

Sprinkler

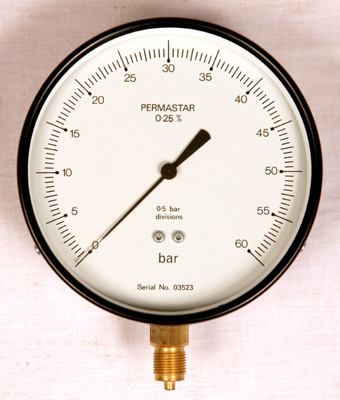

Test Gauges
- 0.25%
Accuracy
Electrical Contact
- Single
or Double

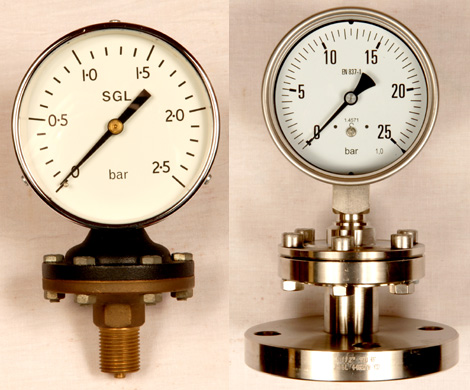

Schaeffer Diaphragm Seal

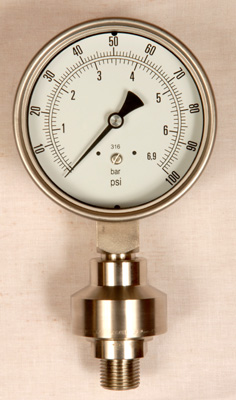

Chemical Seal Diaphragm

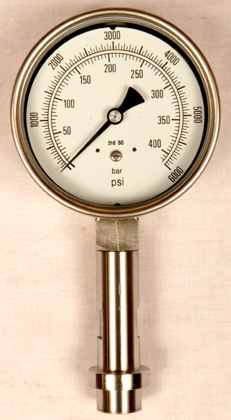

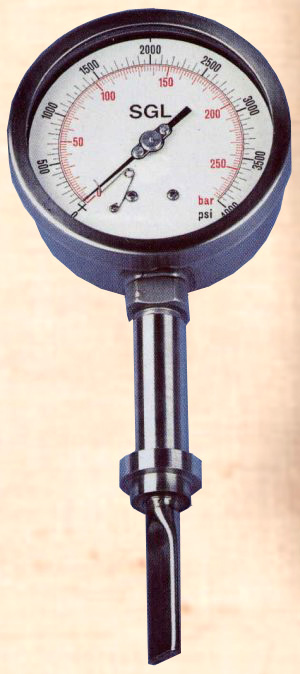

High Pressure Diaphragm Seal Homogenizer Gauge
- Button
High Pressure Diaphragm Seal Homogenizer Gauge
- Fishtail

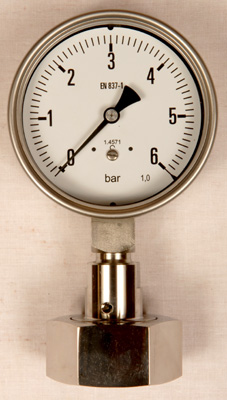

IDF/ISS/RJT/SMS
- 1.5"
to 3"
- Tri-Clover
and clamp also available

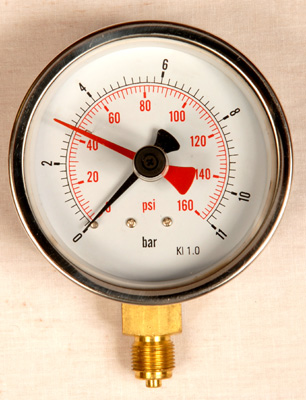

Drag Pointer Gauge

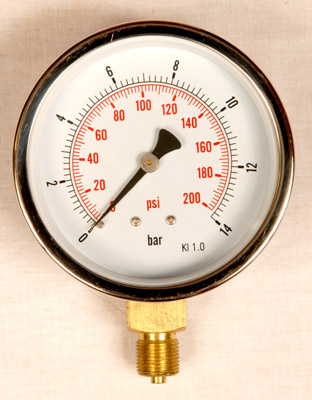

Calibrated Pressure Gauge
- Complete
with certificate
- Thermometers
also available
